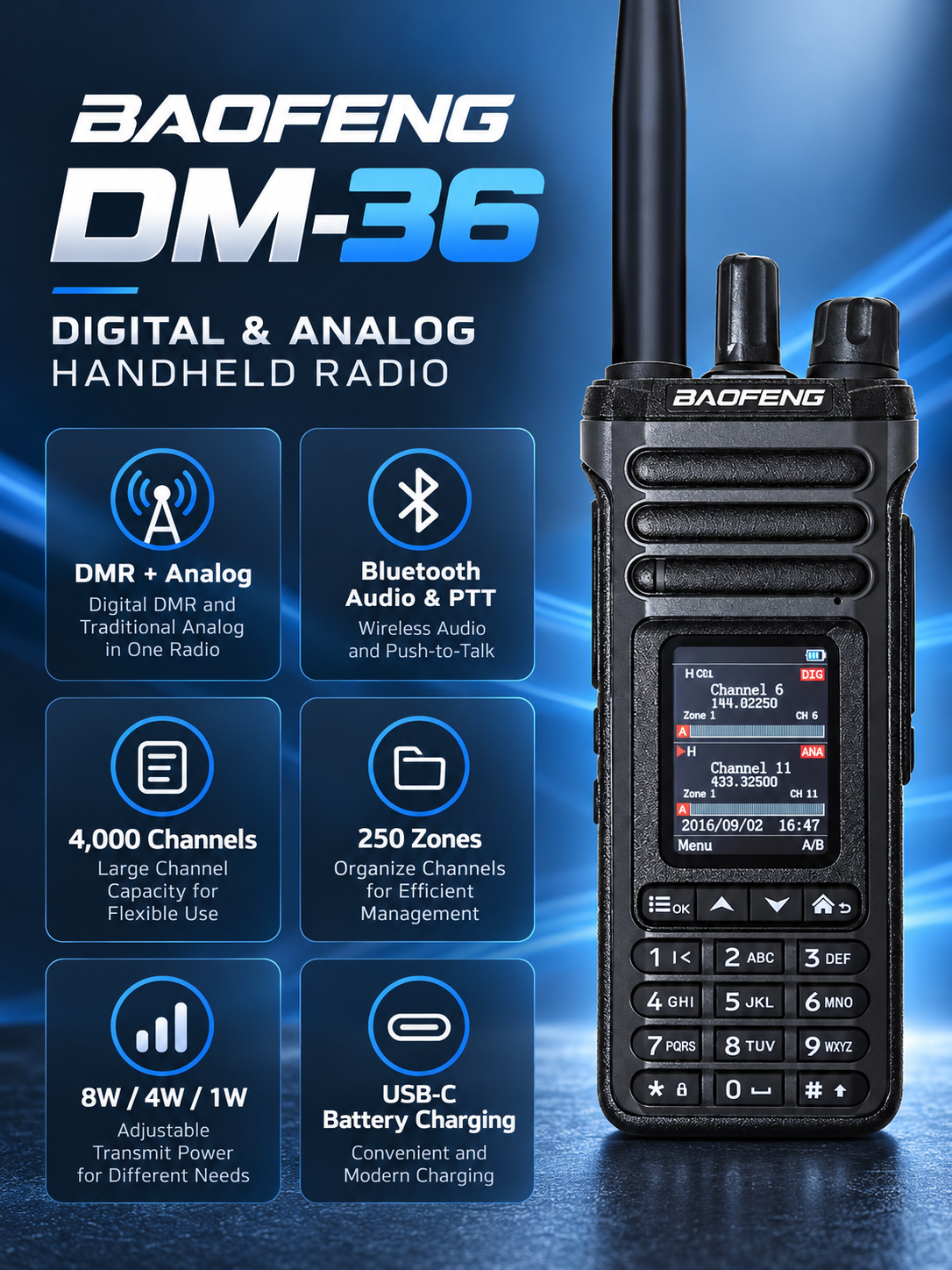

BAOFENG DM-36 — Digital and Analog Communication with Wireless Control Options
The BAOFENG DM-36 is a black dual-band handheld radio supporting DMR digital and analog communication. Its color display, full numeric keypad and programmable side keys offer convenient access to channel settings and everyday functions.

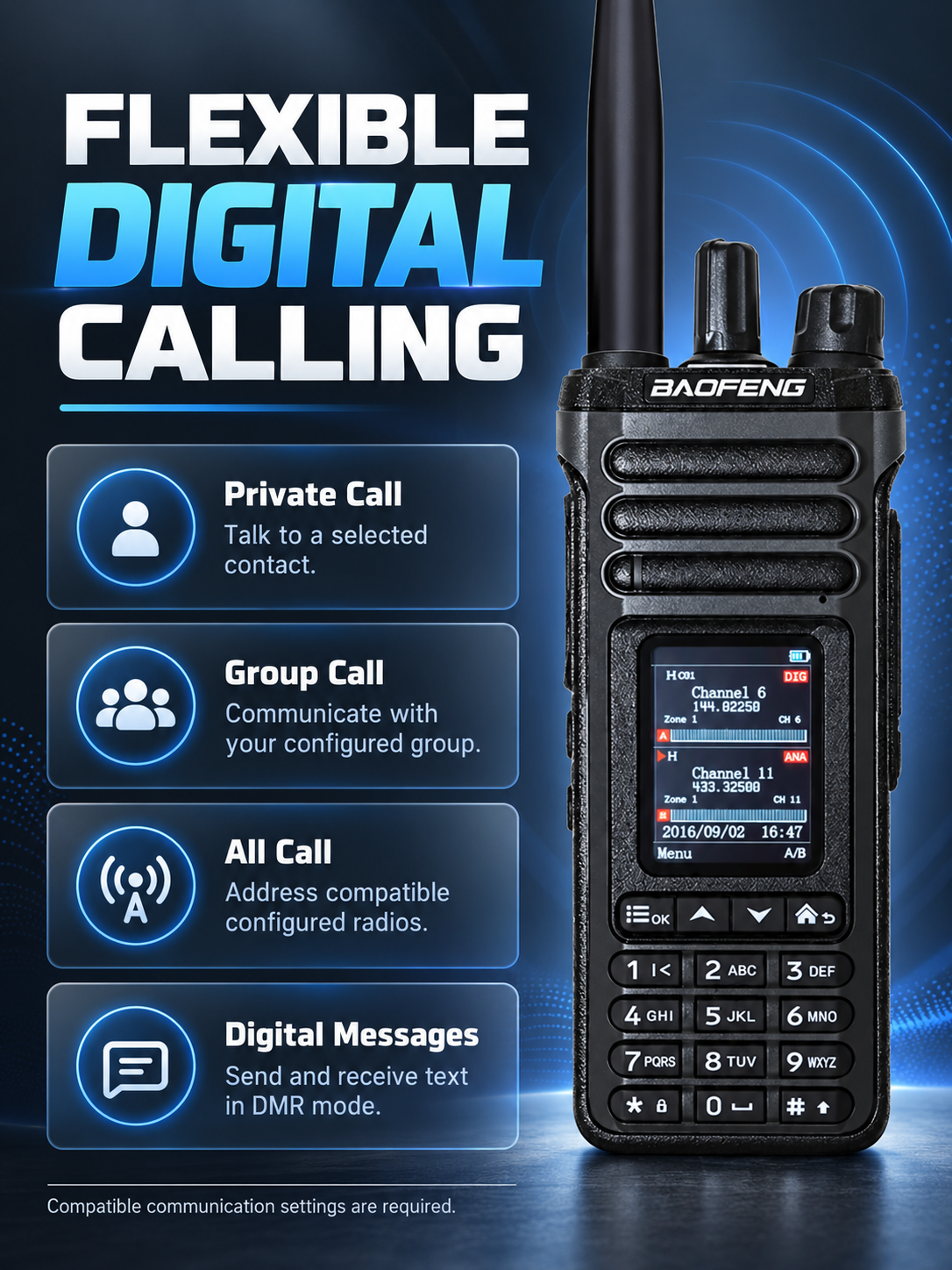

Digital Calling and Messaging
The DM-36 supports private calls, group calls, all calls and one-touch calling in DMR mode. Digital text messaging provides another way to communicate with compatible, correctly configured radios.
Communication requires matching settings. Digital operation may require compatible frequency, color code, time slot, contact and receive-group settings.

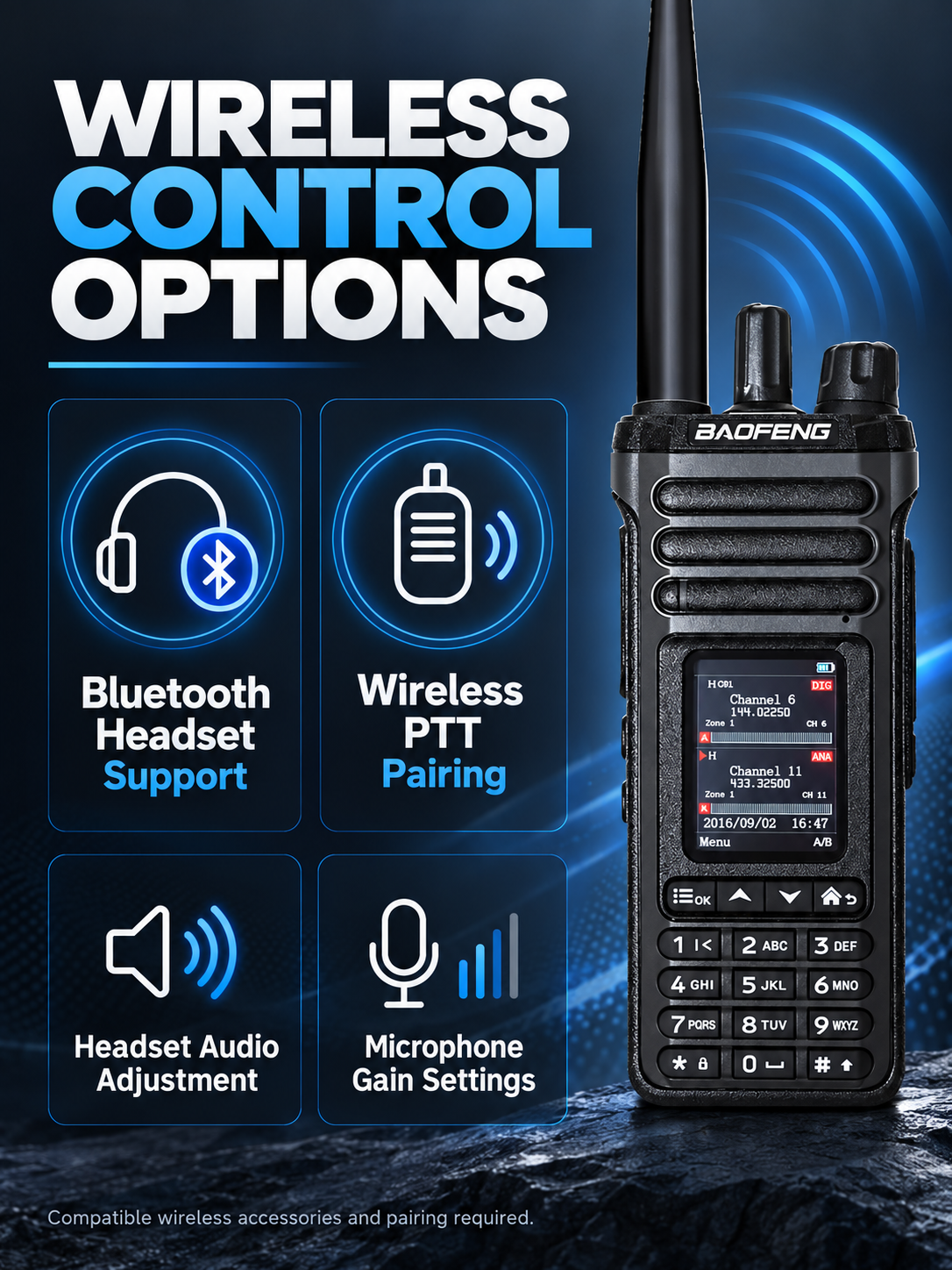

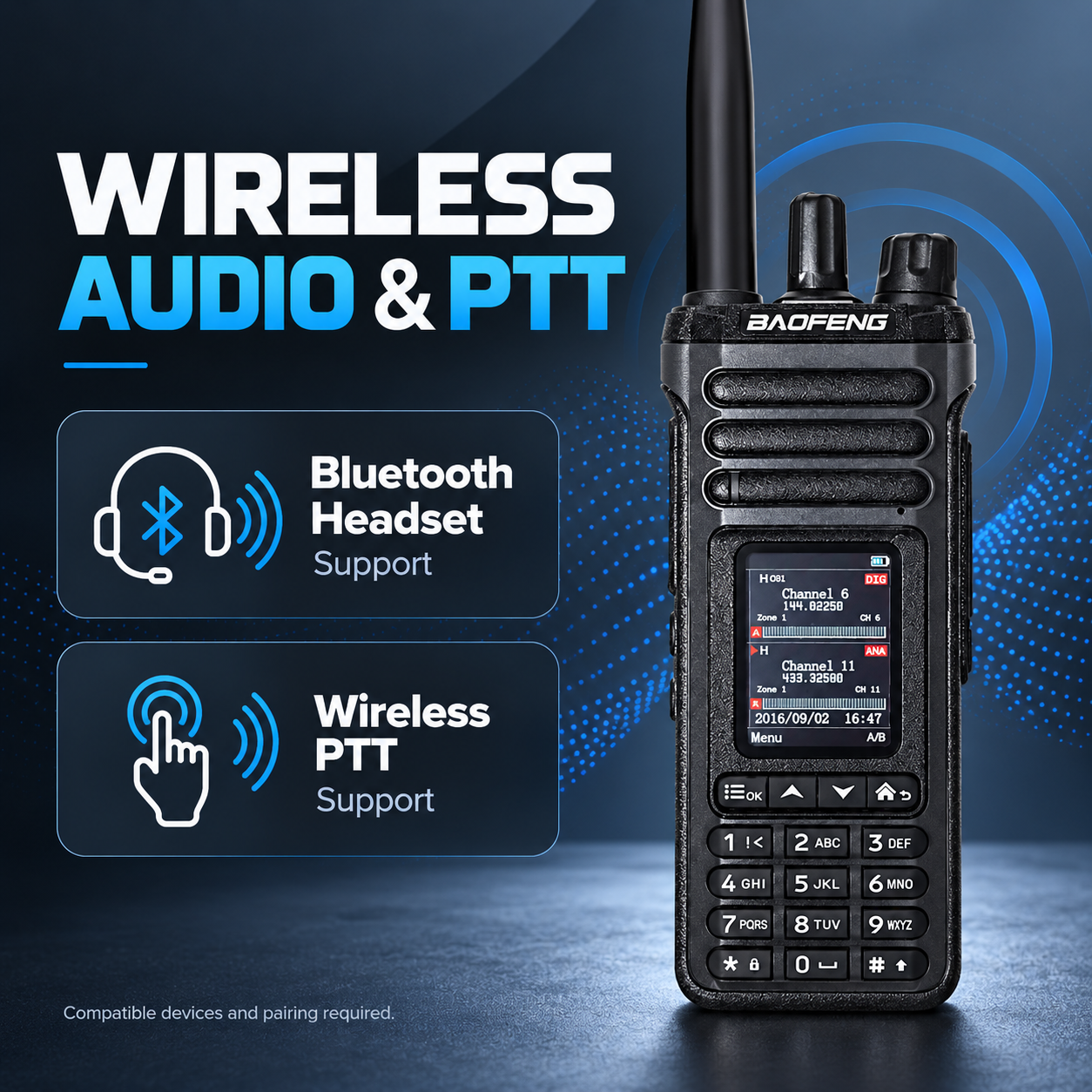

Bluetooth Audio and Wireless PTT
Built-in Bluetooth functionality supports pairing with compatible wireless headsets and PTT devices. The radio provides settings for headset audio level, microphone gain and wireless PTT pairing.
Wireless accessories must be compatible with the radio. Bluetooth support does not imply compatibility with every headset or PTT device.

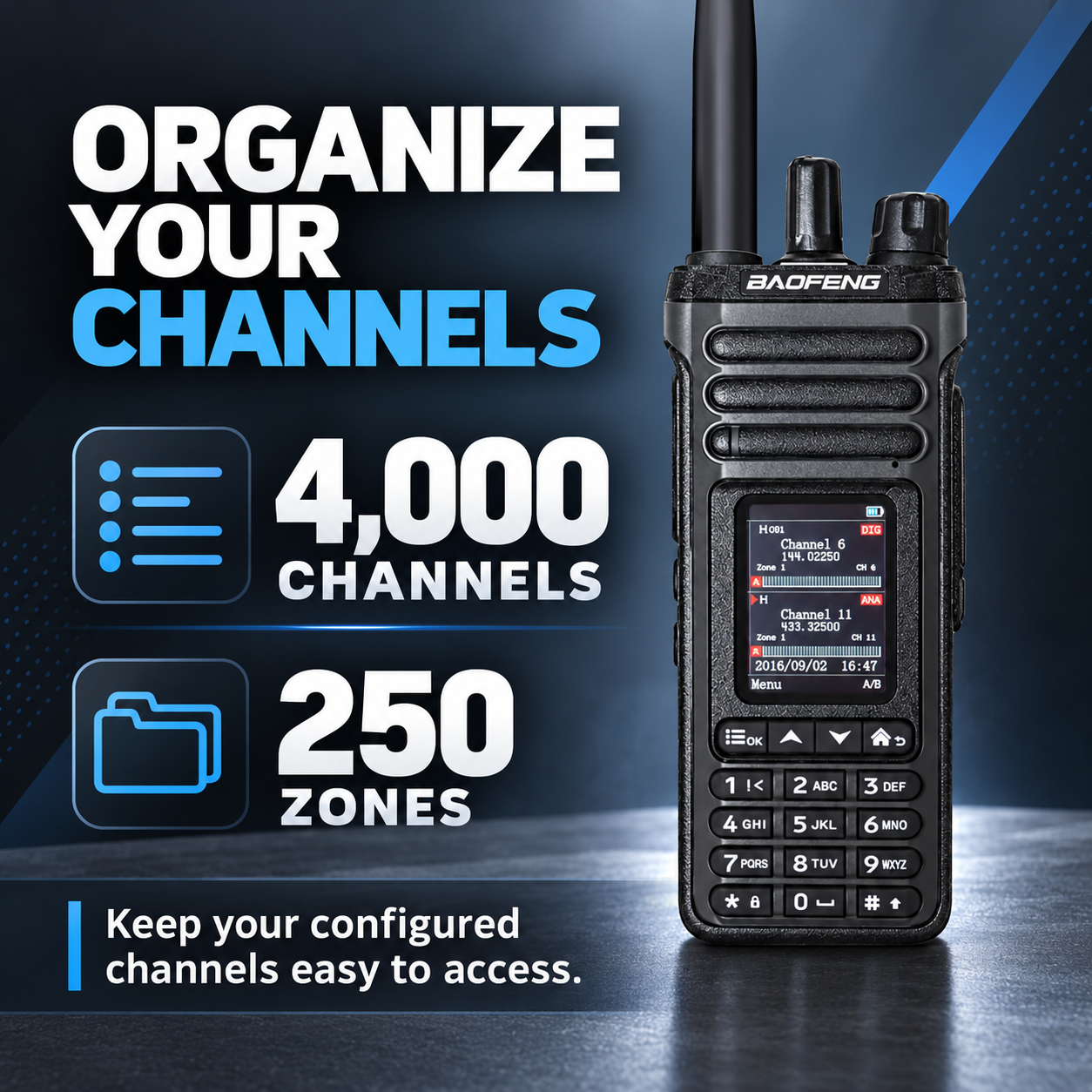

Organize Your Radio Channels
Store up to 4,000 channels across 250 zones. Each zone can contain up to 64 analog and/or digital channels, allowing you to arrange channels into convenient groups.

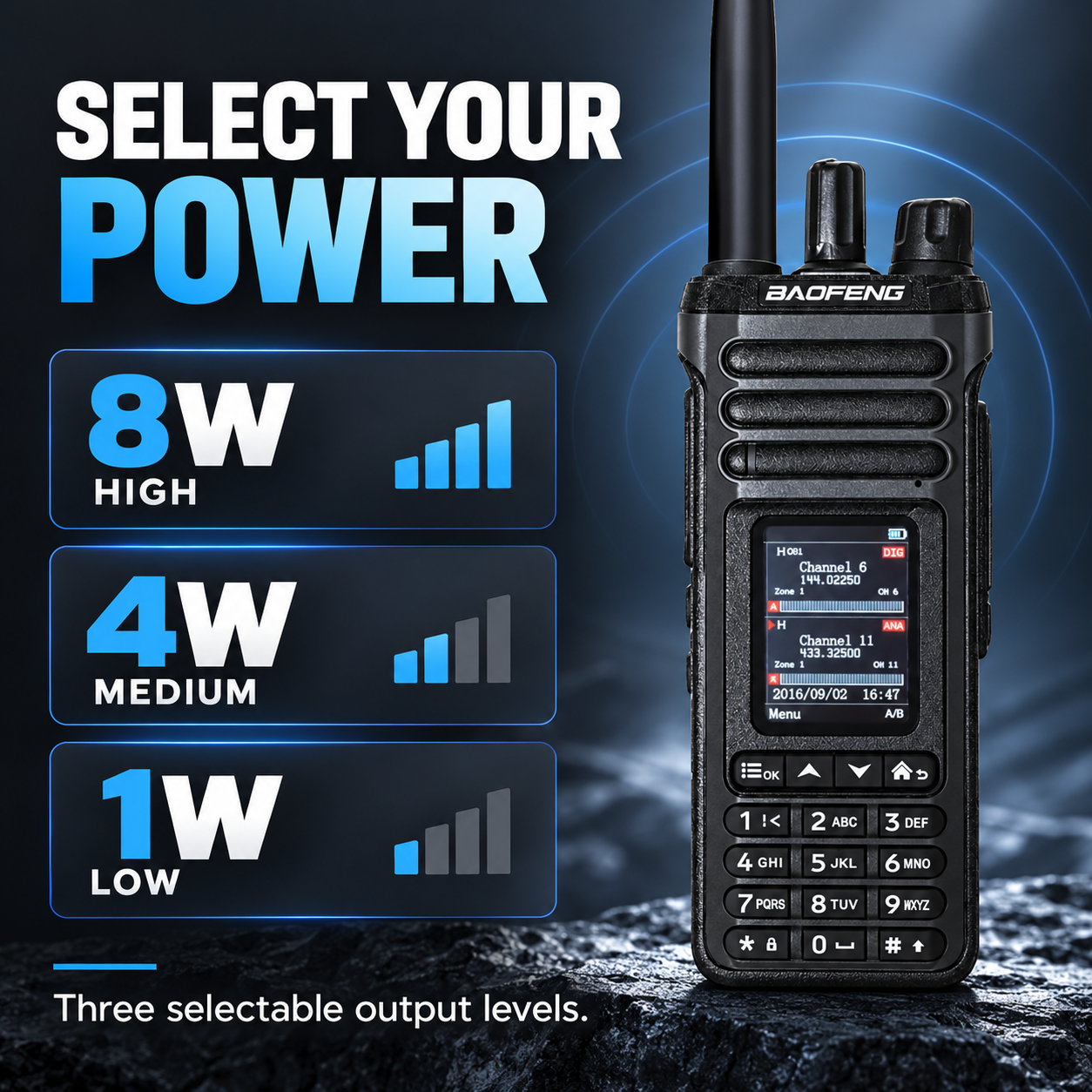

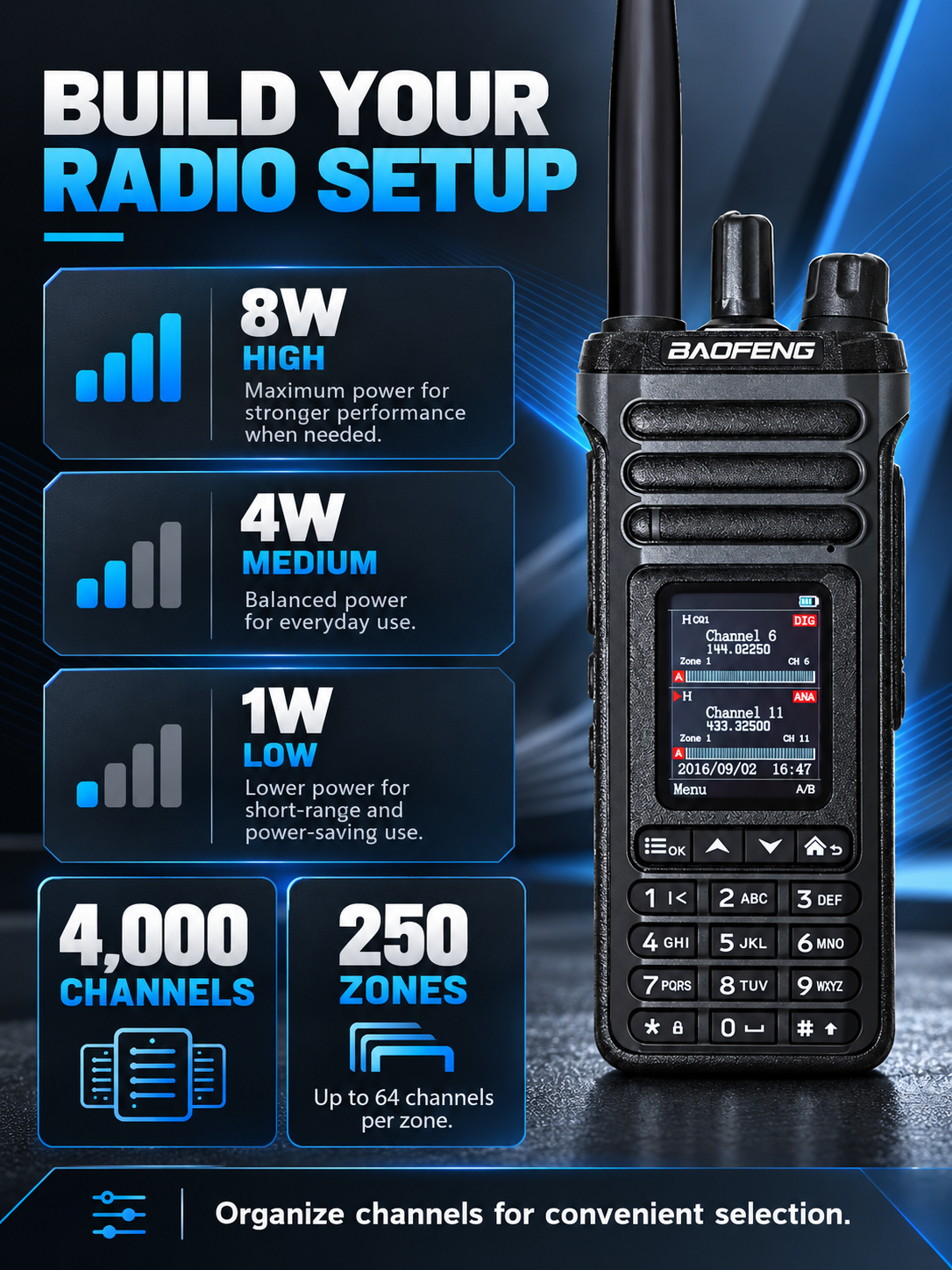

Three Selectable Power Levels
The supplied manual lists 8W high, 4W medium and 1W low output. Select the appropriate level for your configured radio setup.

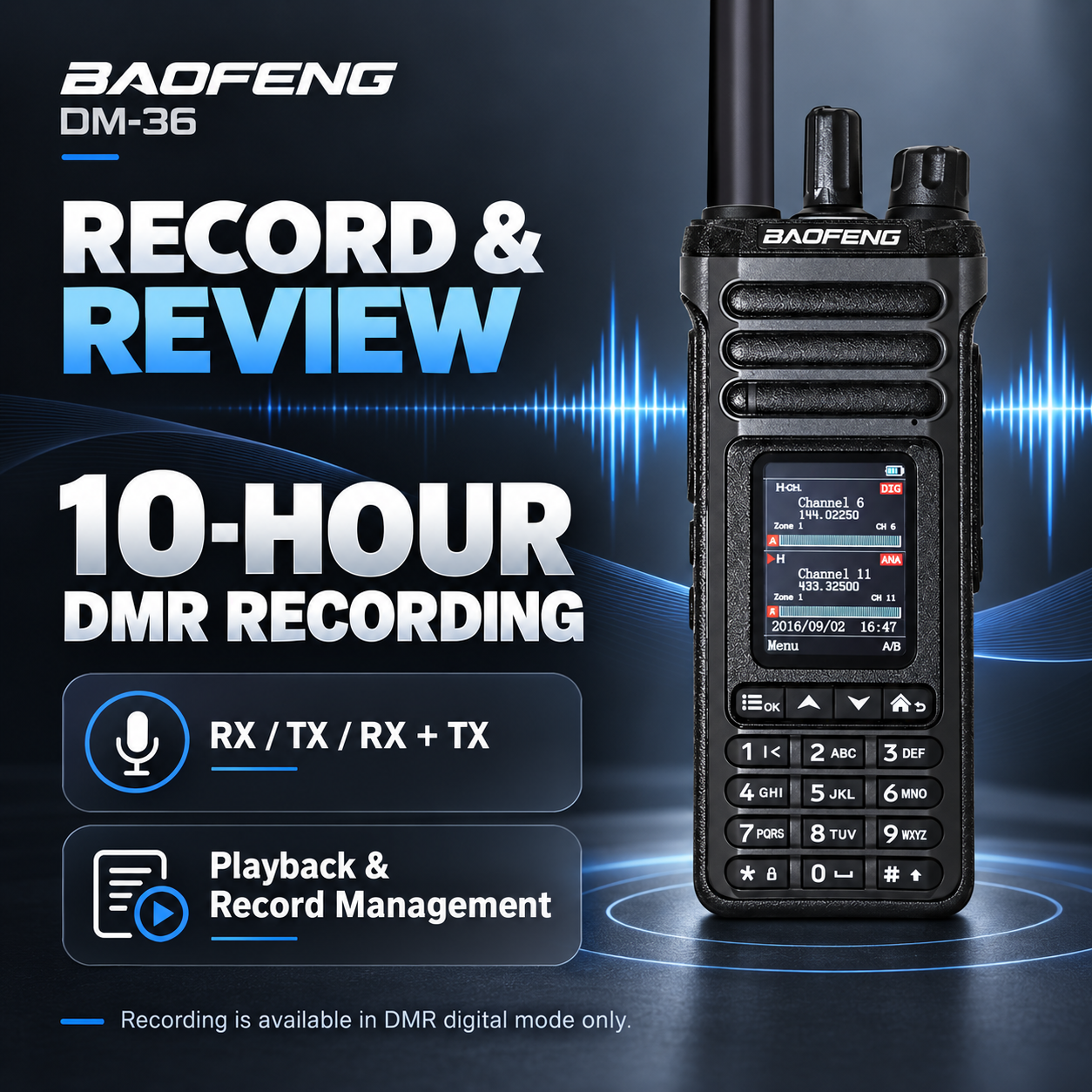

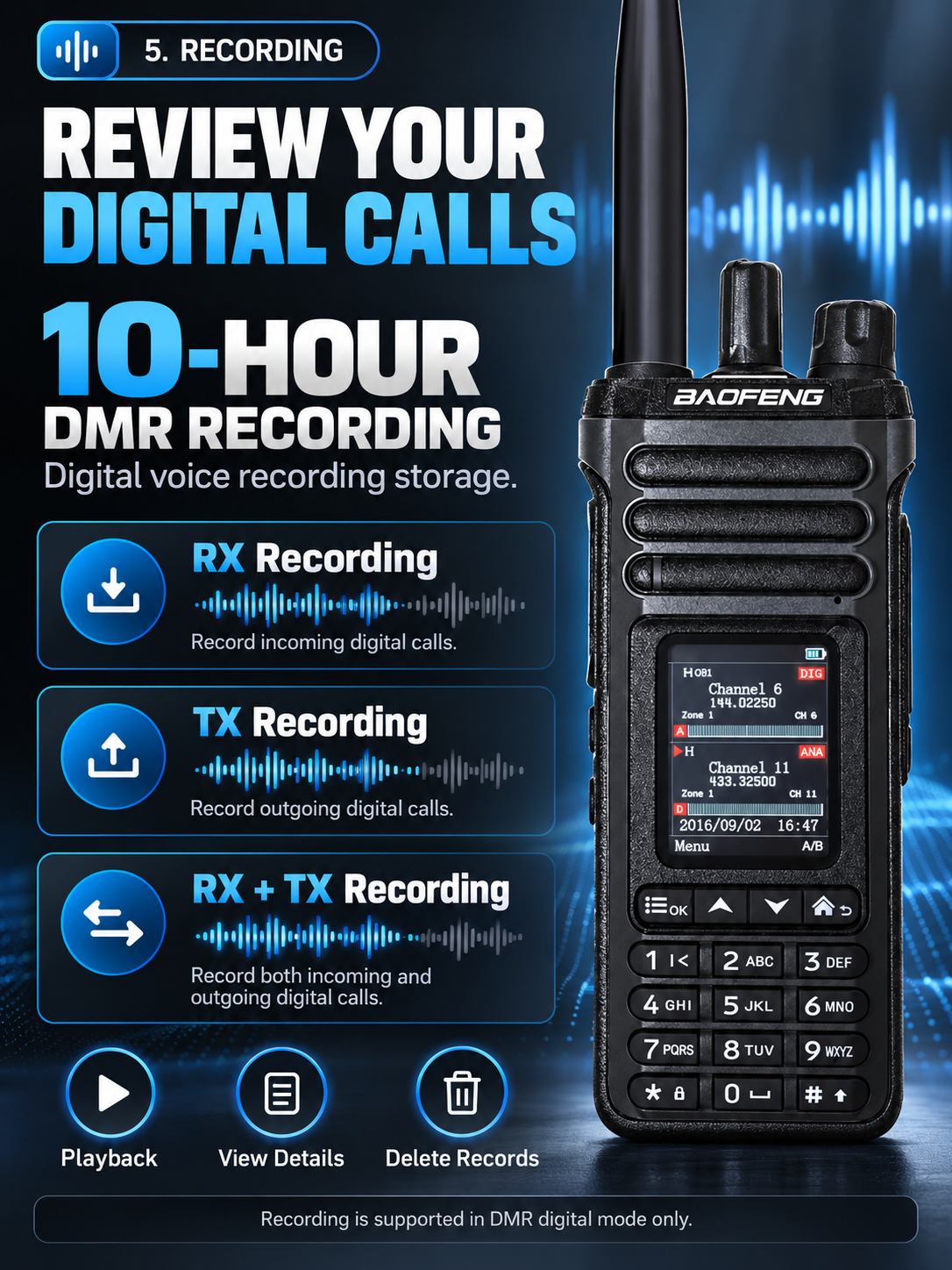

Record and Review Digital Calls
The DM-36 supports approximately 10 hours of DMR voice recording storage. Choose received-call recording, transmitted-call recording or both.
Saved recordings can be played back, reviewed for details or deleted. Recording is supported in DMR digital mode only. Recording capacity does not indicate battery operating time.

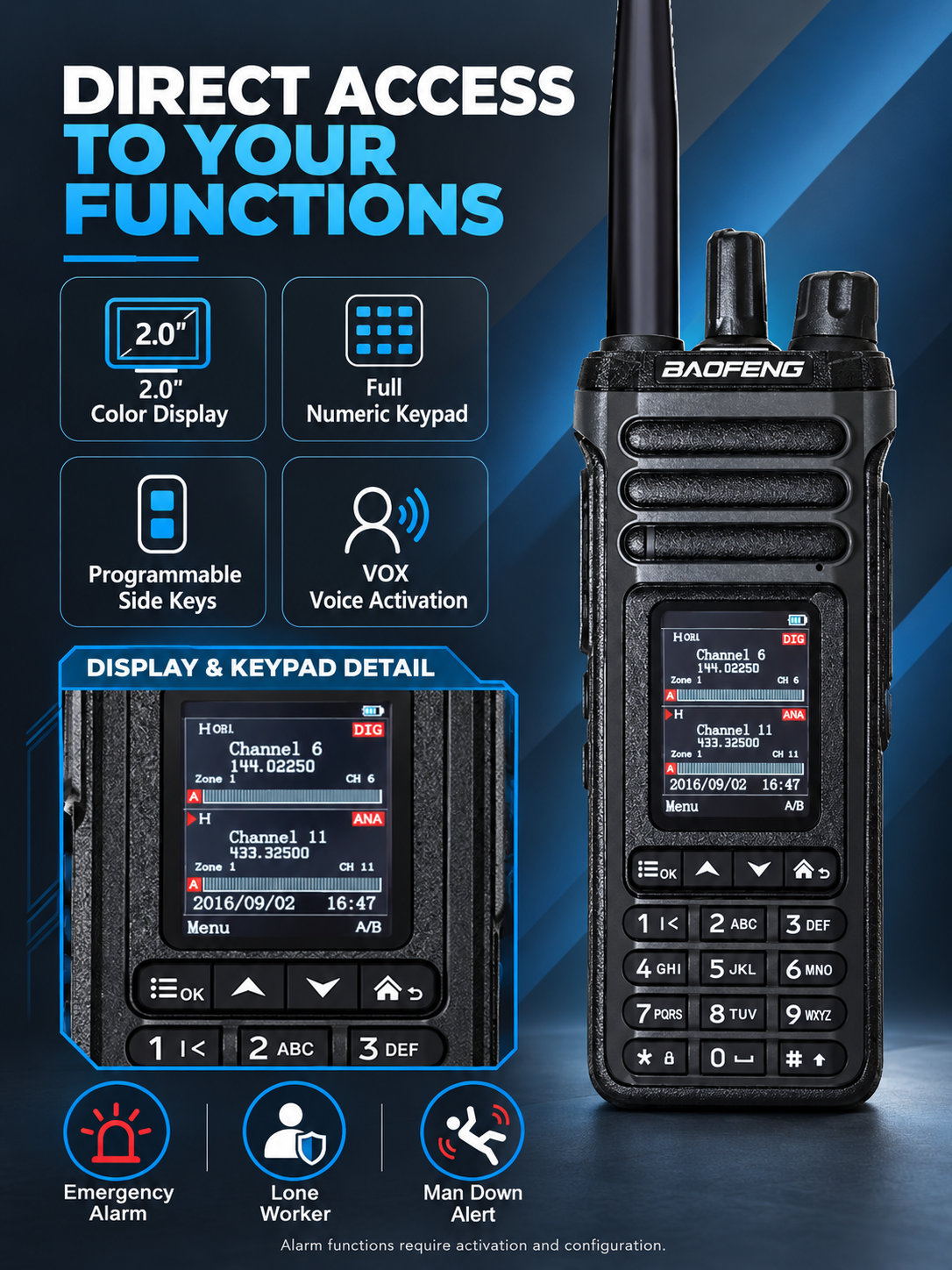

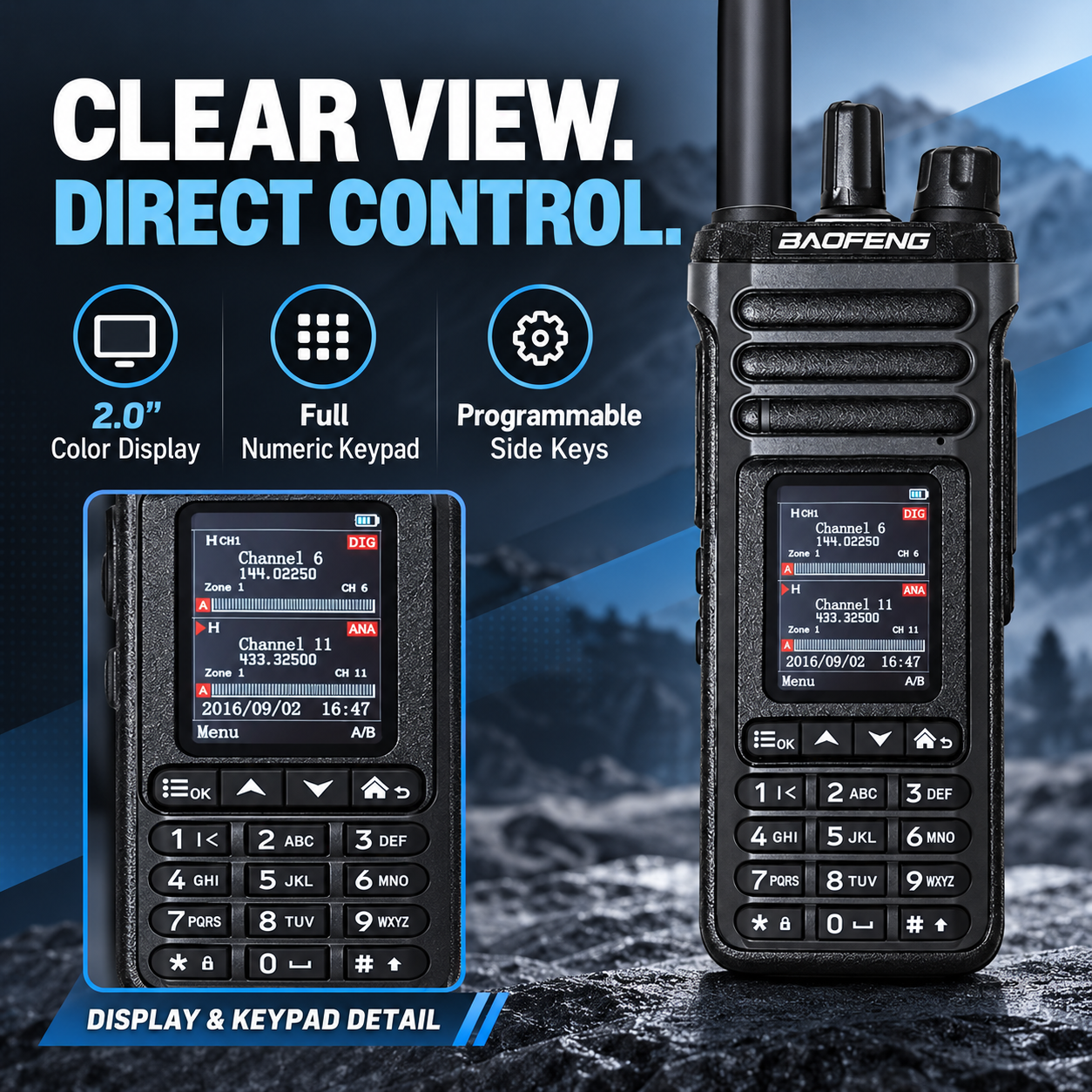

Clear Display and Direct Controls
The 2.0-inch color display shows channel and operating information. A full numeric keypad supports direct input, while programmable SK1 and SK2 side keys provide shortcuts to selected functions. VOX voice activation is also available.

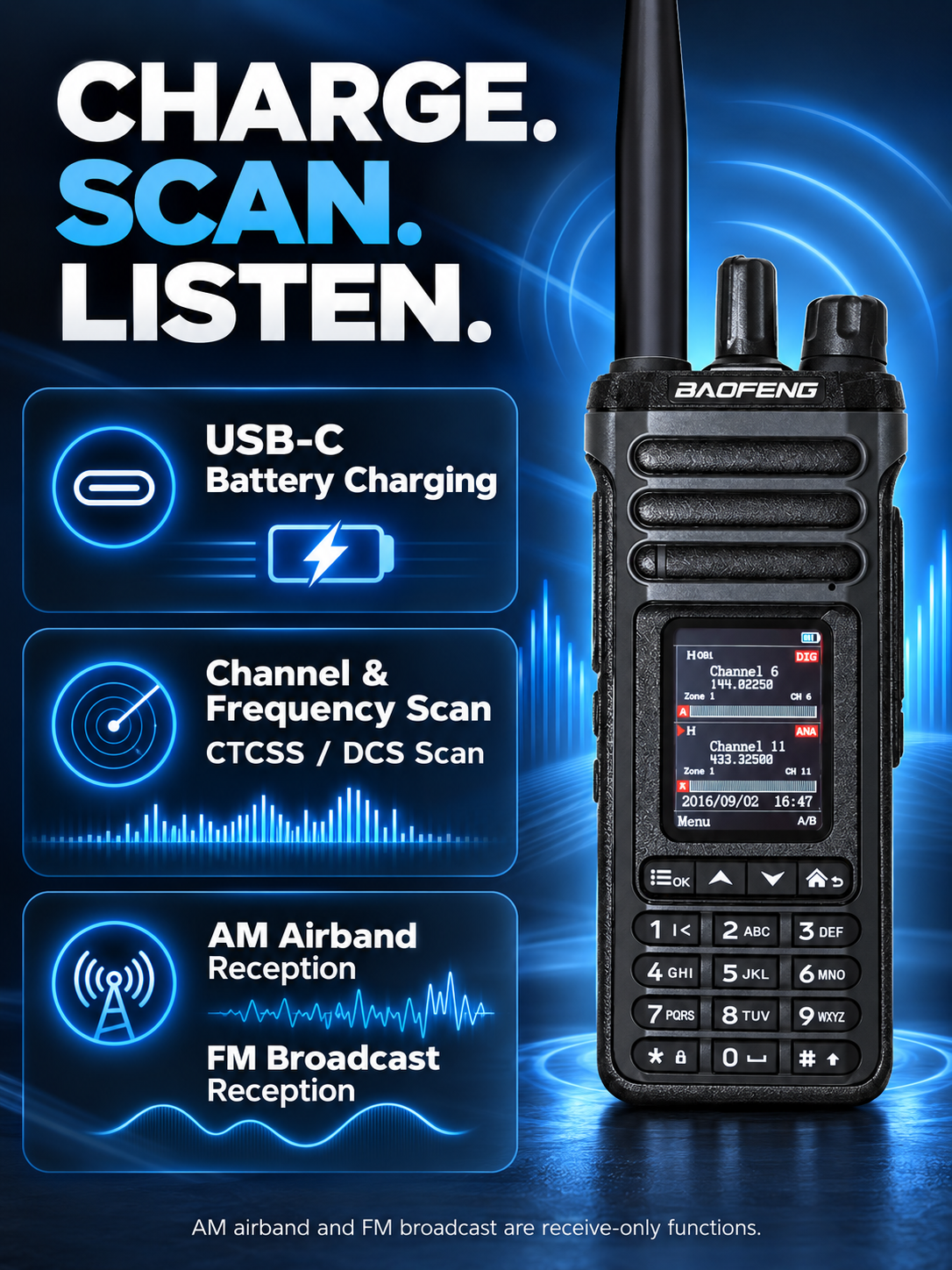

Scanning and Receive-Only Listening
Scanning options include channel scanning, frequency scanning, frequency-range scanning and CTCSS/DCS scanning. The radio also supports AM airband reception and FM broadcast reception.
AM airband and FM broadcast functions are receive-only.
Configurable Alert Functions
Emergency alarm, lone worker and man down alert functions are described in the manual. These functions require activation and suitable configuration.

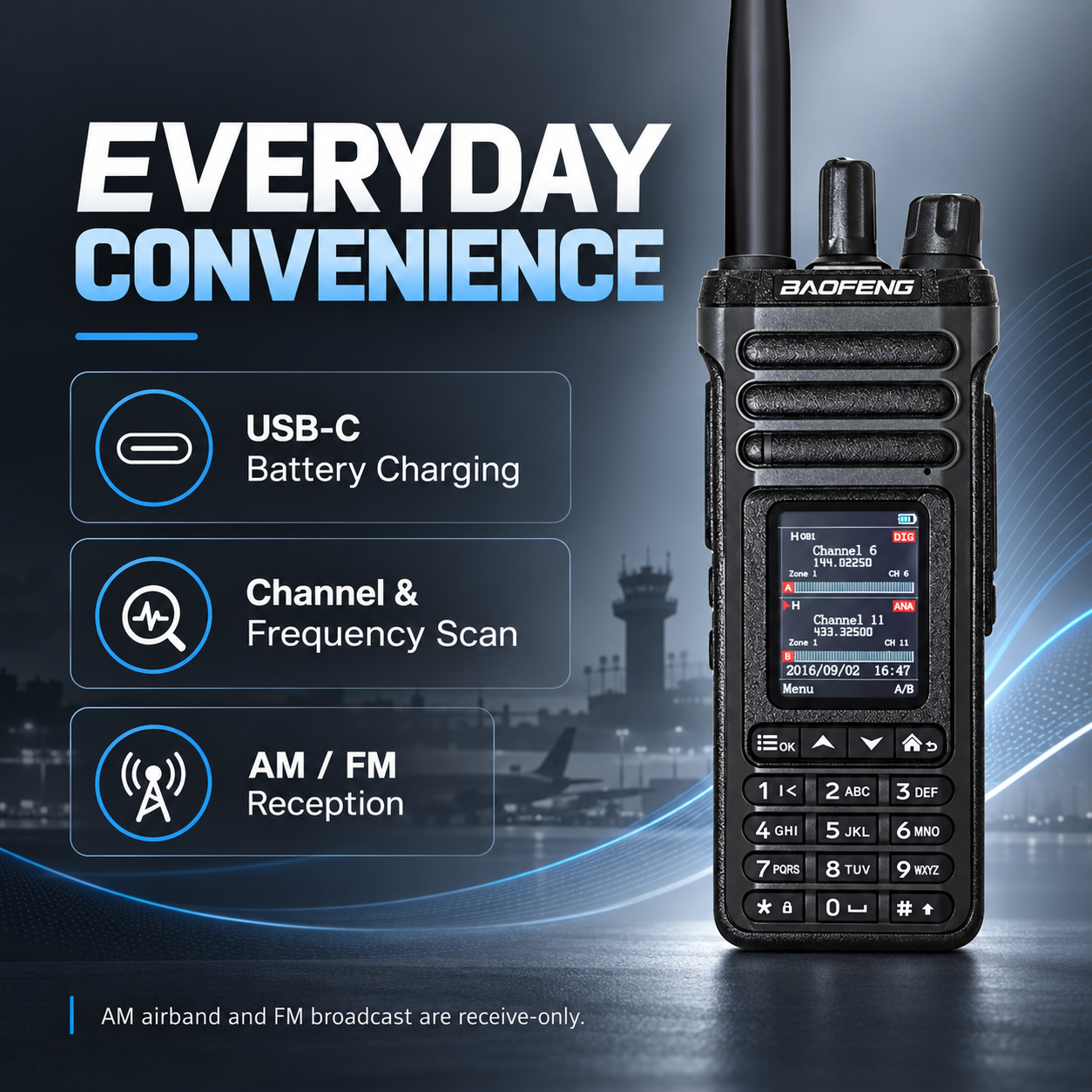

USB-C Battery Charging
Charge through the USB-C port on the battery pack. The manual recommends switching the radio off while charging.
PC Programming and Additional Settings
PC programming supports configuration of channels, contacts and other operating settings. The manual also describes digital encryption and manual or automatic repeater roaming, which require compatible configuration.
Package Option
This listing is for one BAOFENG DM-36 radio in black. Refer to the confirmed package contents for accessories supplied with your order.
Key Features

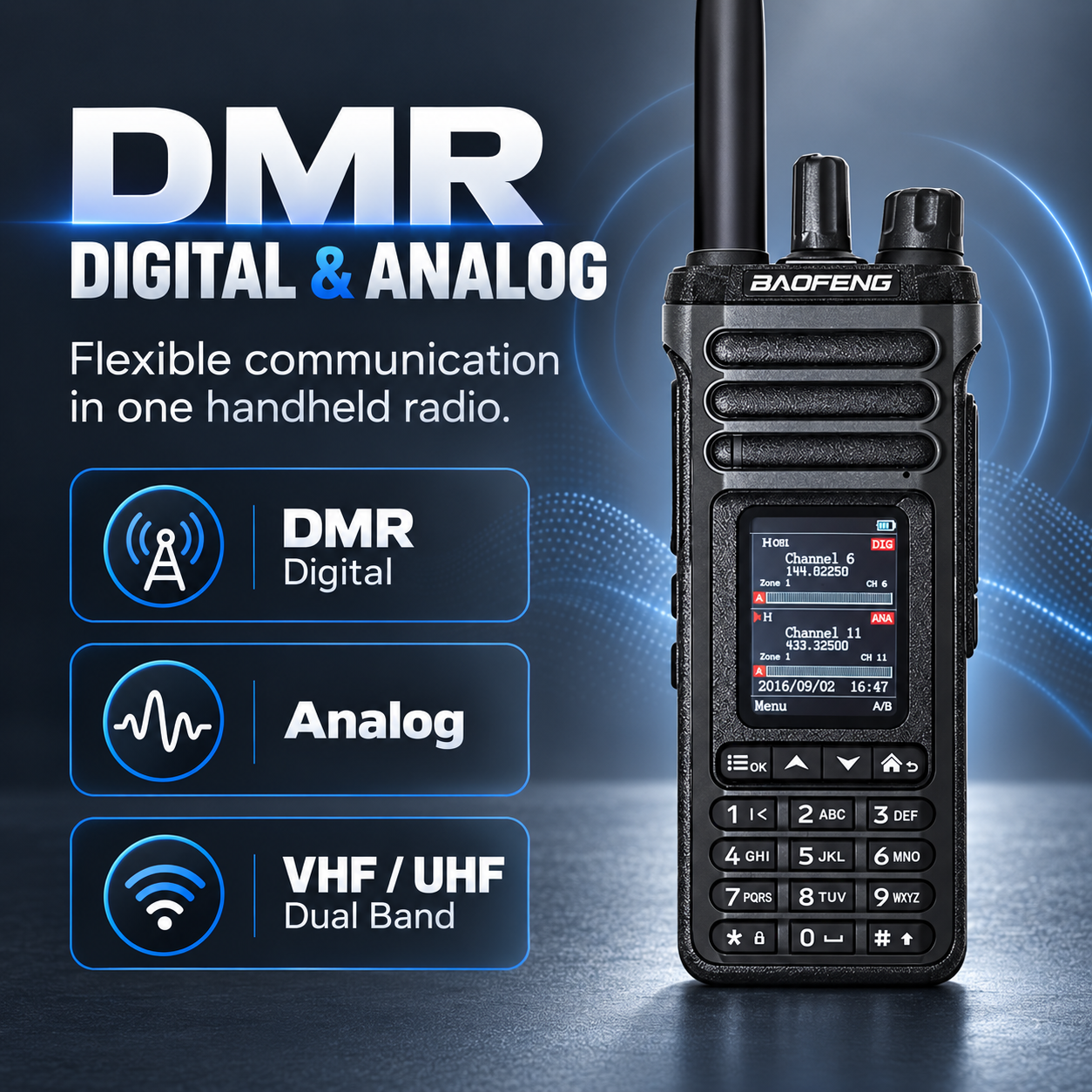

DMR Digital & Analog Communication
Supports DMR digital and analog modes with VHF/UHF dual-band operation. Digital calling options include private calls, group calls, all calls and one-touch calling.
Bluetooth Audio & Wireless PTT Support
Connect compatible Bluetooth headsets and wireless PTT devices. Bluetooth settings include headset audio adjustment, microphone gain and PTT pairing. Accessory compatibility and pairing are required.
4,000 Channels & 250 Zones
Store up to 4,000 channels and organize them across 250 zones. Each zone supports up to 64 analog and/or digital channels for convenient channel management.
Digital Recording & Text Messages
Supports approximately 10 hours of DMR recording storage, with RX, TX or RX + TX recording selection. Play back recordings, view details and delete saved files. Digital text messaging is also supported.
Practical Controls & USB-C Charging
A 2.0-inch color display, full numeric keypad and programmable side keys provide direct access to radio functions. Choose 8W, 4W or 1W output, use VOX voice activation and charge through the battery’s USB-C port.
Specifications
| Brand | BAOFENG |
|---|---|
| Model | DM-36 |
| Colour | Black |
| Package Option | Single Unit |
| Radio Type | Handheld Two-Way Radio |
| Communication Modes | DMR Digital / Analog |
| Band Type | VHF / UHF Dual Band |
| Dual Watch | Supported |
| Display | 2.0" Color Display |
| Keypad | Full Numeric Keypad |
| Memory Channels | 4000 |
| Channel Zones | 250 |
| Channels per Zone | Up to 64 |
| Output Power | High: 8W / Medium: 4W / Low: 1W |
| Bluetooth | Compatible Headset and Wireless PTT Support |
| Digital Calling | Private Call / Group Call / All Call / One-Touch Call |
| Digital Messaging | Supported |
| Voice Recording | DMR Digital Mode Only |
| Recording Storage | Approximately 10 Hours |
| Recording Selection | RX / TX / RX + TX |
| Recording Management | Playback / View Details / Delete |
| Voice Activation | VOX |
| Programmable Side Keys | SK1 / SK2 |
| Charging | USB-C Port on Battery |
| Programming | PC Programming |
| Alert Functions | Emergency Alarm / Lone Worker / Man Down Alert |
| AM Airband | Receive Only |
| FM Broadcast | Receive Only |
Confirmed Product
- 1 × BAOFENG DM-36 Radio
Frequently Asked Questions
Does the DM-36 support digital and analog communication?
Yes. It supports DMR digital and analog communication modes.
Does it support Bluetooth headsets?
Yes. The manual describes Bluetooth pairing with compatible wireless headsets. Compatibility and pairing are required.
Can I use a wireless PTT button?
The radio supports compatible wireless PTT pairing. Check the confirmed package contents to see which accessories are supplied.
Is a Bluetooth headset included?
A Bluetooth headset is not confirmed as included. Refer to the package contents for the selected offer.
How many channels and zones does it support?
It supports 4,000 channels and 250 zones, with up to 64 channels per zone.
What are the output power levels?
The supplied manual lists 8W high, 4W medium and 1W low output.
Can the DM-36 record and play back calls?
Yes. It supports DMR digital voice recording, playback and record management.
What does 10-hour recording mean?
It refers to approximately 10 hours of recording storage. It is not a battery-life rating.
Can it record analog calls?
The manual specifies recording in DMR digital mode only.
Does it support text messaging?
Yes. Digital text messaging is supported with compatible DMR settings.
Where is the USB-C charging port?
The manual describes the USB-C charging port on the battery pack.
Can it receive AM airband and FM broadcasts?
Yes. These are receive-only functions.
Does it support lone worker and man down alerts?
Yes. The manual describes these functions. They require activation and configuration.
Can it communicate with another radio brand?
Communication depends on compatible modes and matching settings, rather than brand alone.
Is this a single radio or a pair?
This listing is for a single radio.
